1. Powernarudhara Low-voltage panels consist short-circuit certification as per 61439 part 1&2 on 6300 Amp 100 ka,
690V
2. powermarudhara MCOP-1 L.T, panel consist all Mandatory test as per 61439 Part 1&2 OEA
3. From 1/2/3a/3b/4a/4b Design in DOP-IP54

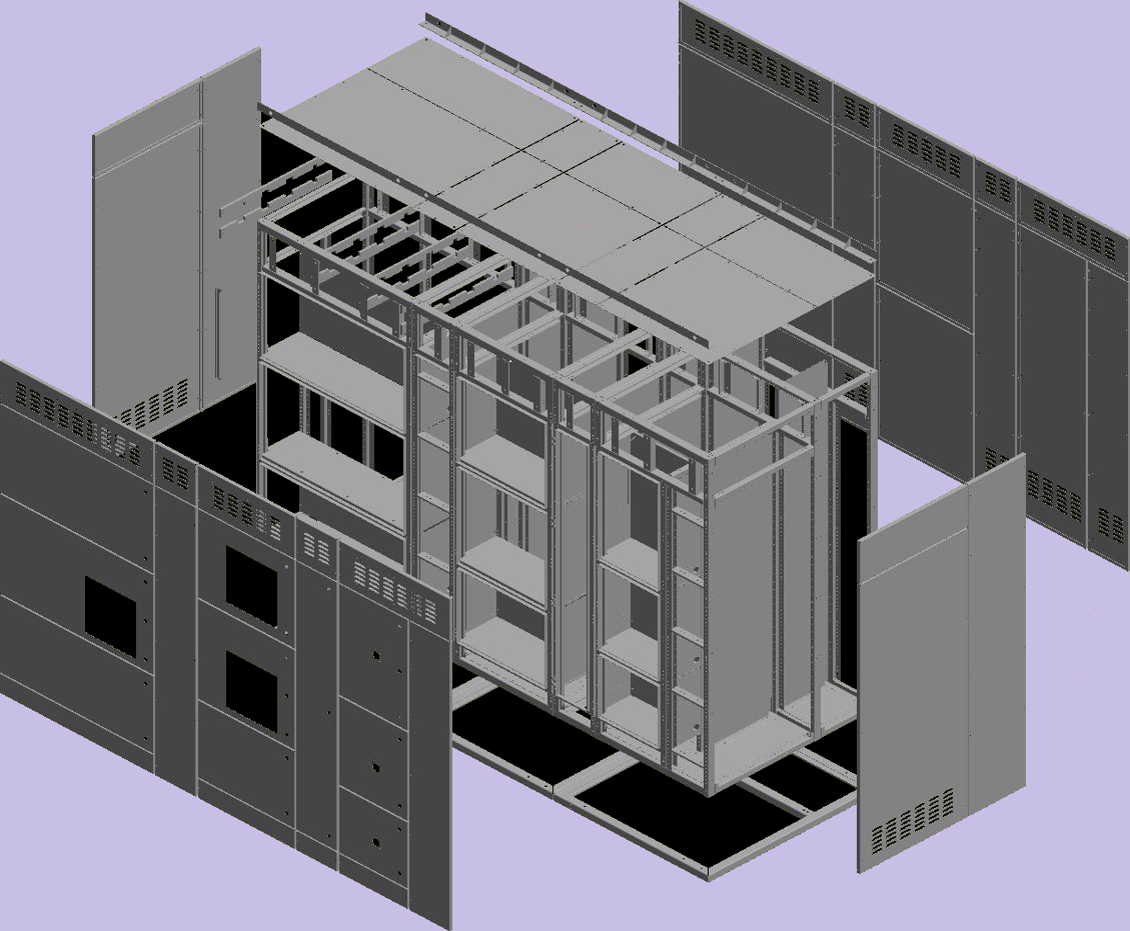

4. CNC Fabricated Fully Bolted Standardized Designs,
5. Non Hygroscopic SMC bus Bar support for best mechanical &electrical strenght for fault with stand
6. Provision for future expansion for both sides,
7. All live parts are shrouded with Polycarbonate sheets.
8. Load bearing Pillars are bone of any design and we have achieved sturdy Enclosure through Multi bend technique in G shaped 2mm TH K crca sheet, used as a standard part in all of our variations of panels
9. Concealed bolted hinges specially designed by marudhara help to maintain Door alignments and same time sturdy
enough to hold door in position even during short circuits as well in internal ARC Conditions Ensures Safety to Nearby
persons.
10. Handling of Heavy weight panels are Great task during shining, loading and unloading, here at marudhan we have
designed sturdy foolproof system by using L shape angle in 4mm THK with Gussets for Extra strength, bolted along with
length of panels,
11, Our Modular bolted panel enclosures are more unique because of a special designed standardized base frame fabricated in
3mm THK CRCA sheets, helps in easy handling of panels during shifting and Quick fixing as Grouting
12. Busbar insulators are carved in SMC (sheet molding compound) sheets from 10/15/20mm TH K Suitable to withstand
50/65/100 Ka short circuit current. (a) SMC Materials has very high insulation strength (b) SMC Materials is non
Hygroscopic (c) SMC Supports reducing hardware and assembly time during fixing in panels,
