powermarudhara is cpri approved OEA type tested as per 61439 part 1&2 electrical panel manufacturer. We provide our solution from designing to commissioning with proper fabrication, and assembly of electrical panels. We are one of the recognized names in the industry for designing, keeping in mind the specific requirements of the clients, and providing an array of Electrical Panels

Power Control Centers

  • AUTO MAINS FAILURE
  • METER BOARDS
  • L.T. BUS DUCTS / RISING MAINS
  • FEEDER PILLARS
  • MOTOR CONTROL CENTERS

CNC Fabricated Design

  • POWER DISTRIBUTION BOARDS
  • APFC PANELS
  • PLC BASED AUTO SYNCHRONIZING
  • SOFT STARTER PANELS
  • AC DRIVE PANELS

Technical Specification

1. Powernarudhara Low-voltage panels consist short-circuit certification as per 61439 part 1&2 on 6300 Amp 100 ka,
690V
2. powermarudharaMCOP-1 L.T, panel consist all mandatory test as per 61439 Part 1&2 OEA
3. From 1/2/3a/3b/4a/4b Design in DOP-IP54
4. CNC Fabricated Fully Bolted Standardized Designs,
5. Non Hygroscopic SMC bus Bar support for best mechanical &electrical strenght for fault with stand
6. Provision for future expansion for both sides,
7. All live parts are shrouded with Polycarbonate sheets.
8. Load bearing Pillars are bone of any design and we have achieved sturdy Enclosure through Multi bend technique in G shaped 2mm TH K crca sheet, used as a standard part in all of our variations of panels
9. Concealed bolted hinges specially designed by marudhara help to maintain Door alignments and same time sturdy
enough to hold door in position even during short circuits as well in internal ARC Conditions Ensures Safety to Nearby
persons.
10. Handling of Heavy weight panels are Great task during shining, loading and unloading, here at marudhan we have
designed sturdy foolproof system by using L shape angle in 4mm THK with Gussets for Extra strength, bolted along with
length of panels,
11, Our Modular bolted panel enclosures are more unique because of a special designed standardized base frame fabricated in
3mm THK CRCA sheets, helps in easy handling of panels during shifting and Quick fixing as Grouting
12. Busbar insulators are carved in SMC (sheet molding compound) sheets from 10/15/20mm TH K Suitable to withstand
50/65/100 Ka short circuit current. (a) SMC Materials has very high insulation strength (b) SMC Materials is non
Hygroscopic (c) SMC Supports reducing hardware and assembly time during fixing in panels,

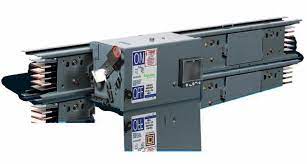

BUS - BAR TRUNKING SYSTEM

Powermarudhara leading supplier and manufacturing of the BUS-BARTRUNKING SYSTEM. Busbar Trunking System is the system of distributing electric power using copper or aluminiem busbar with factor, While using traditional cables, the cost of cabling and truncking and the time t den for installation is much higher than busbars as well.

DESIGNING

Powermarudhara offers clients a wealth of experience, the latest in engineering methology and proven quality control. Our engineers and designers become an integral part of each project, from design through final inspection

Electrical System Design

  • Power System
  •  Medium and high voltage distribution single diagrams
  • Panel Layout.
  • Autocad Drawings
  • Single line diagrams.
  • General arrangement drawings.

Modular Bolted Design

  • Sturdy and robust construction
  • Good in aesthetics
  • Great flexibility and enterchangiblity  at a time during manufacturing or on field
  • Parallel activities such as busbar forming, and wiring is possible which helps to reduce assembly timing
  • Accommodates all kinds of makes /ratings of switchgear
  • Reduces manufacturing/delivery time
  • Ample place for cable termination
  • The design supports a form of separation, 4b
  • Fulproof panel lifting arrangement
  • Panel design compliances all requirements of IEC 61439 part 1-2
  • The design supports to all types of variations such as front access, rear access,MCC/PCC /acb/marshaling panels.

Modular Bolted Design Features

  • Load-bearing pillars are the bone of any design and we have achieved sturdy enclosure through multi bend technique in g shaped  2 mm thick circa sheet, used as a standard part in all of our variations of panels.
  • Concealed bolted hinges specially designed by Powermarudhara help to maintain door alignments and same time sturdy enough to hold the door in position even during short circuits as well in internal arc conditions ensures safety to nearby persons.
  • Handling heavy weight panels is a great task during shifting, loading, and unloading, here at Powermarudhara we have designed a sturdy fulproof system by using l shape angle in 4 mm thick with gussets for extra strength, bolted along with the length of panels.
  • Our modular bolted panel enclosures are more unique because of the specially designed standardized base frame fabricated in 3 mm thick circa sheets, which helps in easy handling of panels during shifting and quick fixing as grouting.
  • Busbar insulators are carved in SMC(sheet molding compound) sheets from 10/15/20 mm thick suitable to withstand 50/65/100 ka short circuit current. SMC materials have very high insulation strength SMC materials are nonhygroscopic. SMC supports to reduces hardware and assembly time during fixing in panels.

Modular Bolted Design Features

  • Nut plates used to tighten two metal parts help to ensure rock sturdy joints and reduce enclosure assembly time.
  • Crome plated, round head specially designed screws are used for fixing covers, adding an elegant aesthetic look to panels.
  • The door gasket’s special profile of neoprene materials ensures ingress protection IP 55.
  • Cag enuts are used to avoid washout of threads in case of multiple fixing and removing of screws.
  • Special couple washers are used in tightening busbars to maintain tightning/fixing force at joints.
  • High tensile yellow passivated 8.8-grade hardware with spring and plain washers are used at all locations.
